Smart Home 180° 8MP 8MP Security CCTV Camera
Smart Home 180° 8MP 8MP Security CCTV Camera
About this item
- 【4K HD Image and 180° Ultra-Wide Splicing View with Dual Lens】This IP camera uses 2.8mm@F1.2 lenses, showing you unparalleled ultra HD 4K videos at 4096×1840@20fps resolution. The images' details are still clear, even enlarged, and smooth with no lag. 20:9 image scale with advanced Image Fusion tech perfectly matches the screen without distortion or dead zone. This dual-lens security cam combines two 1/2.5" BSI sensors into ONE stunning 180° feed without distortion! Farewell to regular cams with 90° views in 1080p clarity—this is an ideal choice for your home or business!

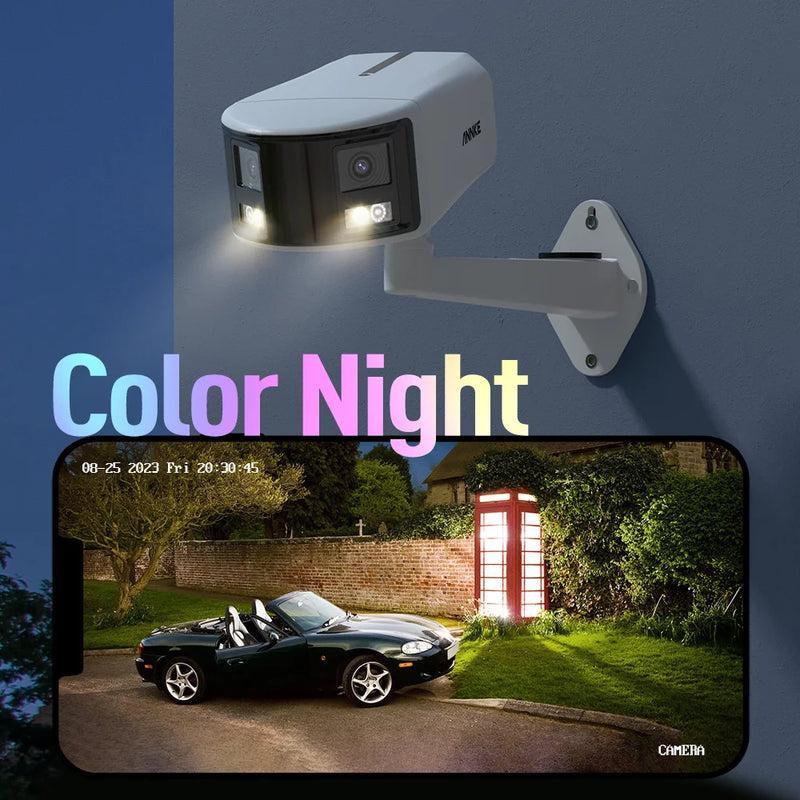

- 【Full-Color Vivid Night Vision】The camera has full-color night vision whether it is day or night, the vivid live view can help you know every single thing. 2 lighting modes for you: color night vision (up to 66ft) and IR fill light B&W night vision (up to 100ft), you can go to browser settings to change it.
- 【Accurate Human and Vehicle Detection, Two-Way Audio Intercom】Once this surveillance camera detects human & vehicle motion, you'll receive real-time alerts. For your greater relief, you may set the line/zone to ward off the unwelcome by triggering the customizable siren. Motion detection 2.0 can reduce false alarms with up to 99% accuracy. You can set the line/zone to scare away the unwelcome by triggering the customizable siren when it detects. The sound and image can be recorded simultaneously with the inserted Mic, and two-way talk can be done anytime. There are 12 defaulted alarm sounds to choose from, and you can also record your voice as an alarm.
- 【Multiple Storage Options】Inserting up to 256GB TF card (not included) into the camera with automatic cycle recording. Plus, there are no monthly cloud storage fees, and NAS and NVR are supported. These are good data backup methods.
- 【Untrammelled Remote Access】You can enjoy unlimited remote access via the ANNKE Vision APP and Clients with smartphones, tablets, or laptops. You can check live view or playback anytime, anywhere. In addition, you can receive instant app alarm push notifications and email alerts when you detect any difference.
- 【Reachable 2-Way Audio】2-way talk frees you from staying home and enables you to answer the delivery men or warn the unwelcome even though you're a thousand miles away. The instant pop-up always reminds you to keep an eye on your home, too.
- 【Friendly-Designed Details Polish Your Usage】Unlike those multi-cams with many holes to drill & screws to run, this 1 PoE cam works as two and takes up only 1 NVR channel. The outstanding IP66 weather-resistant ability boasts against all harsh conditions.
- Built-in TF card slot (not including TF card), maximum 256G (automatic loop coverage recording), support NAS, NVR storage.
- IP66 industrial grade waterproof.
Features:
Model Number |
I91DW/I91DX |
|
IP Camera |
||
Camera |
Image sensor |
2×1/2.5" Progressive Scan CMOS |
Max resolution |
4K(4096 × 1840), 20: 9 picture ratio |
|
Main Stream |
50 Hz: 20 fps (4096 × 1840) |
|
Sub Stream |
50 Hz:20 fps(1200 × 536,960 × 432) |
|
Video compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Built-in Microphone |
Built-in Microphone, record with audio |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 |
|
Built-in Speaker |
Yes, max. sound pressure: 10 cm: 95 dB |
|
Lens |
Dual lens: 2.8 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|
Angle of View |
Horizontal FOV: 180° ± 10°, Vertical FOV: 81° ± 10° |
|
Supplement Light Type |
White light, IR |
|
Supplement Light Range |
White light up to 20 m, IR light up to 30m |
|
Motion detection 2.0 |
Support, including Human & Vehicle Detection |
|
Image Parameters Switch |
Yes |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120dB WDR |
|
Network Protocols |
TCP/IP, ICMP, HTTP, HTTPS,802.1x,FTP, DHCP,DNS, DDNS,RTP, RTSP,RTCP,NTP, UPnP,SMTP, IGMP,QoS, IPv6,UDP, Bonjour,SSL/TLS, WebSocket, SNMP |
|
API |
Open Network Video Interface Version 19.12 |
|
Basic Event |
Motion detection (support human and vehicle detection), video tampering, exception detection |
|
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection(support human and vehicle detection) |
|
Audio Alarm |
Support(Parameters adjustable, support custom audio, can be triggered from APP) |
|
Region of Interest (ROI) |
One fixed region for mainstream |
|
General Function |
IP Address Filter |
|
General |
Housing |
Metal&Plastic, White color |
Operating Power |
PoE (802.3af),12 VDC ± 25%,Ø 5.5 mm coaxial power plug |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Storage |
Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR |
|
DC12V output |
DC12 V,100 mA output |
|
Audio input/output |
One input (line in), one output (line out) |
|
Alarm nput/output |
One input, one output (max. 24 VDC, 1 A) |
|
Hardware Reset |
Yes |
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP66 |
|
Dimension (L x W x H) |
103.6 × 76 × 193.4 mm |
|
Weight |
Approx. 600 g (1.32 lb.) |
