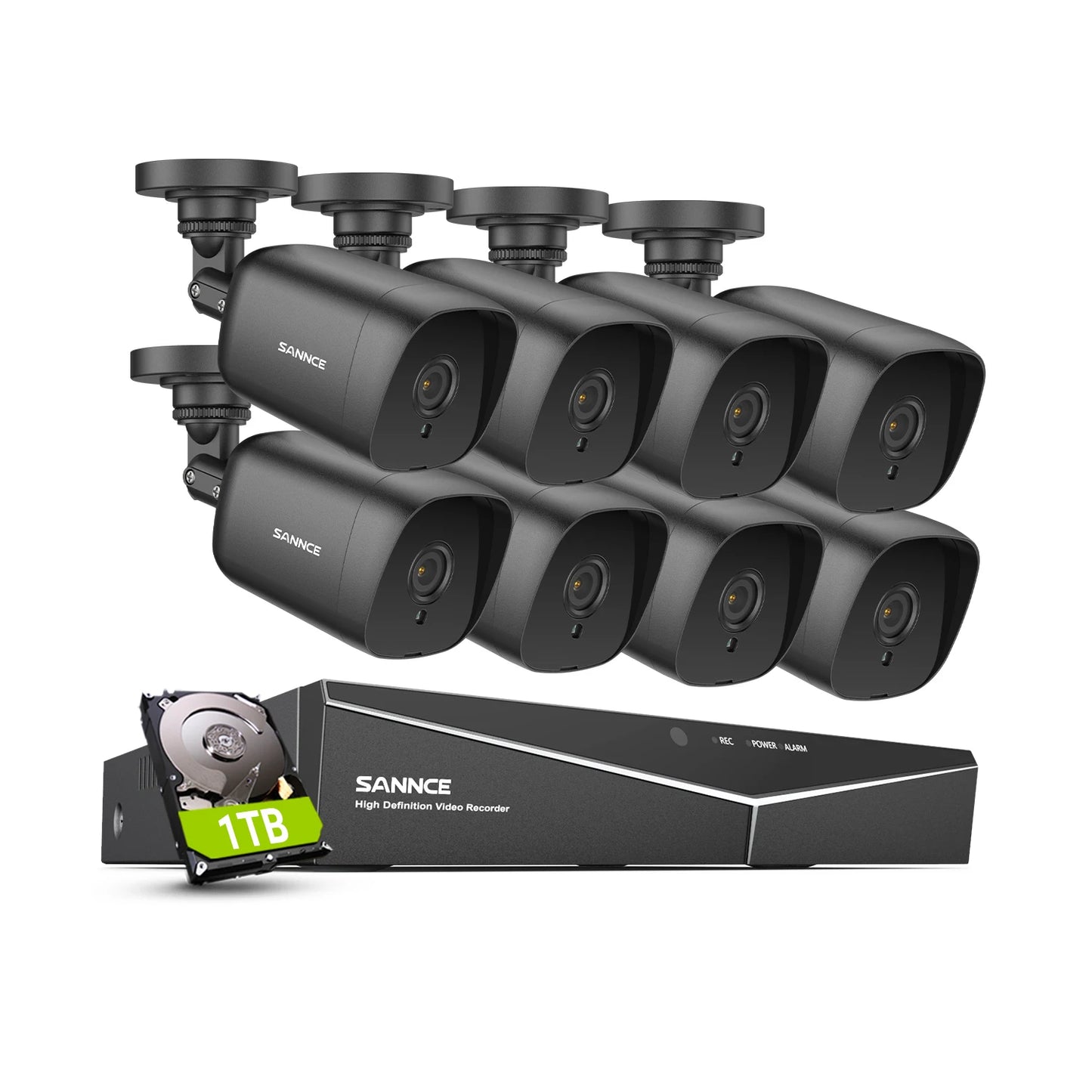

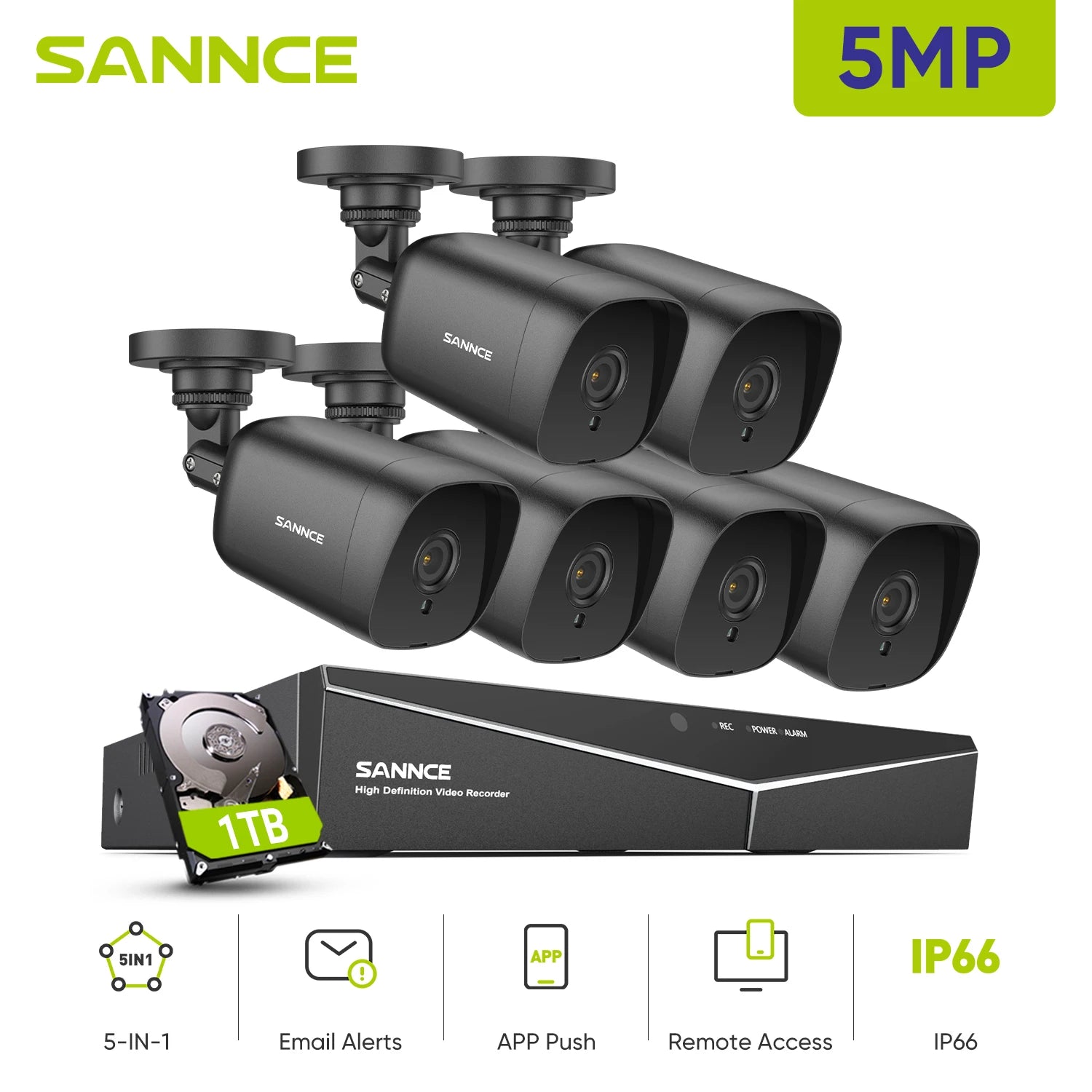

Security Camera CCTV System

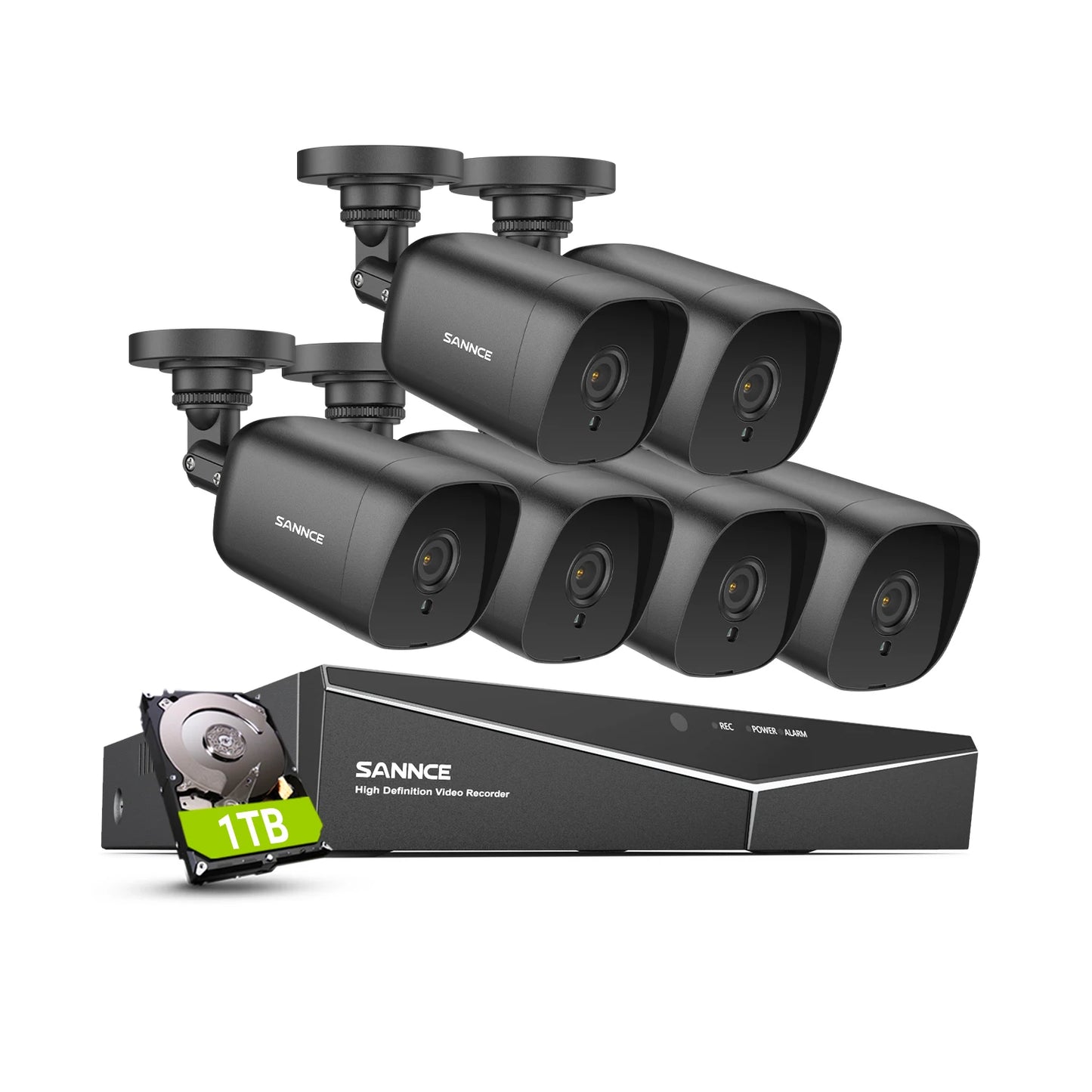

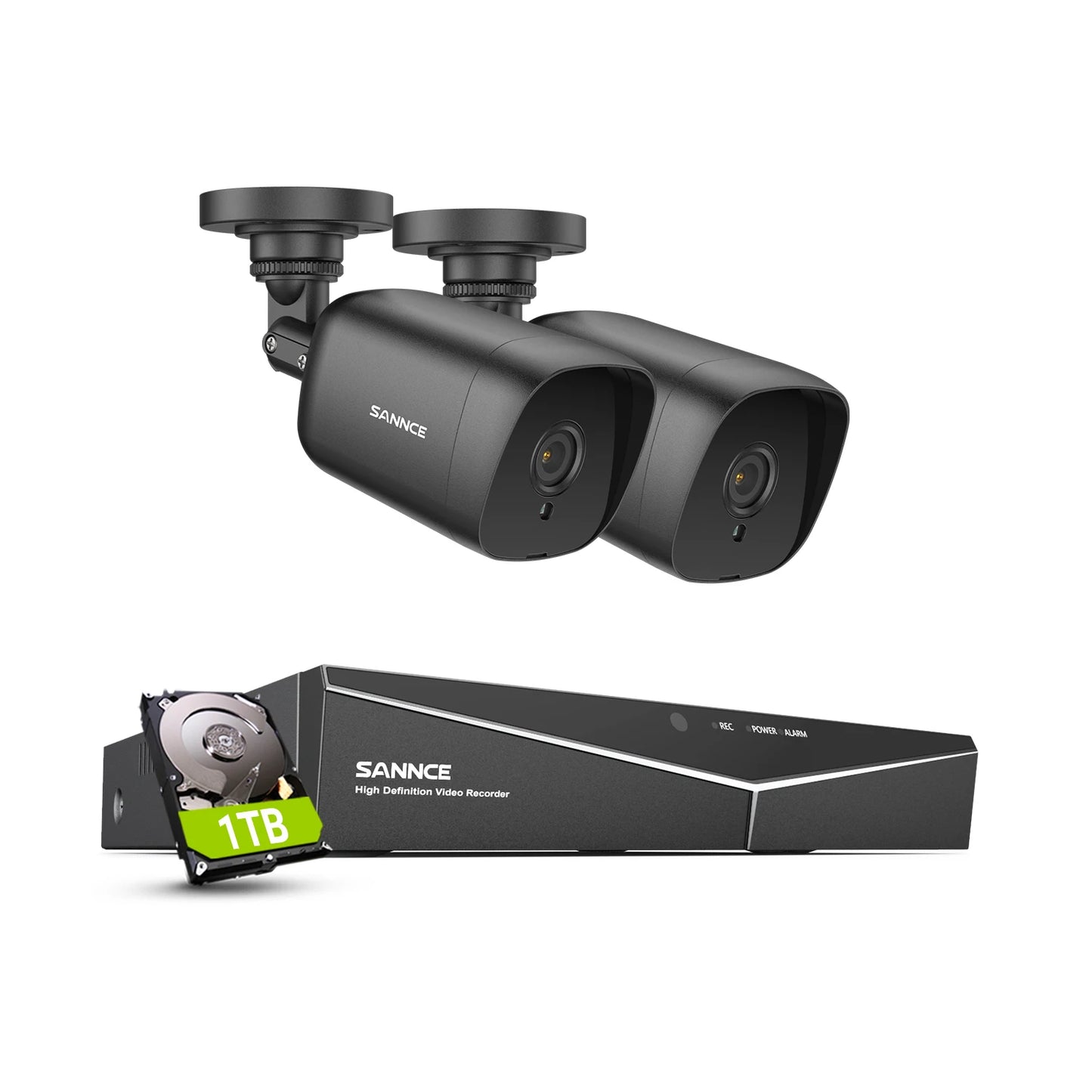

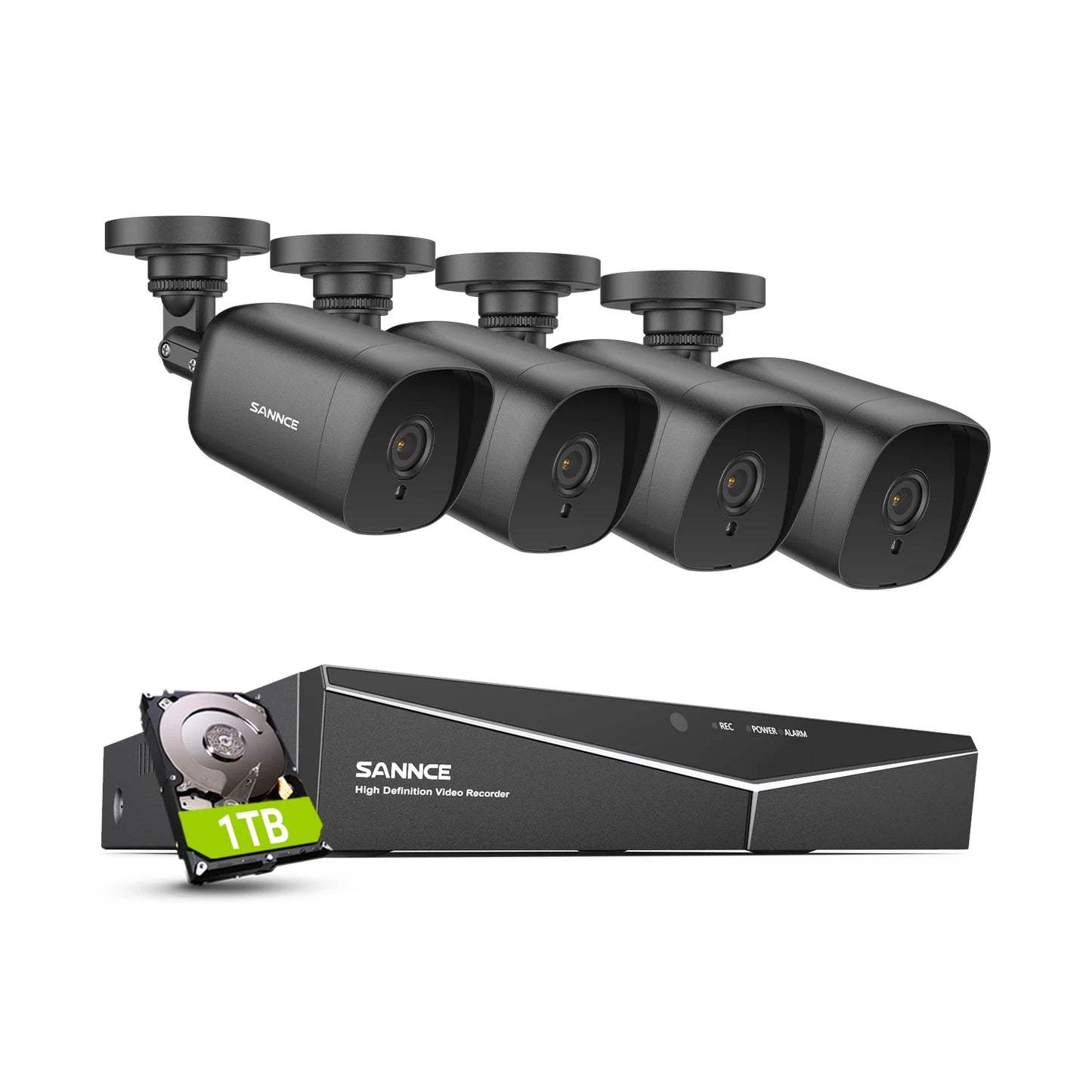

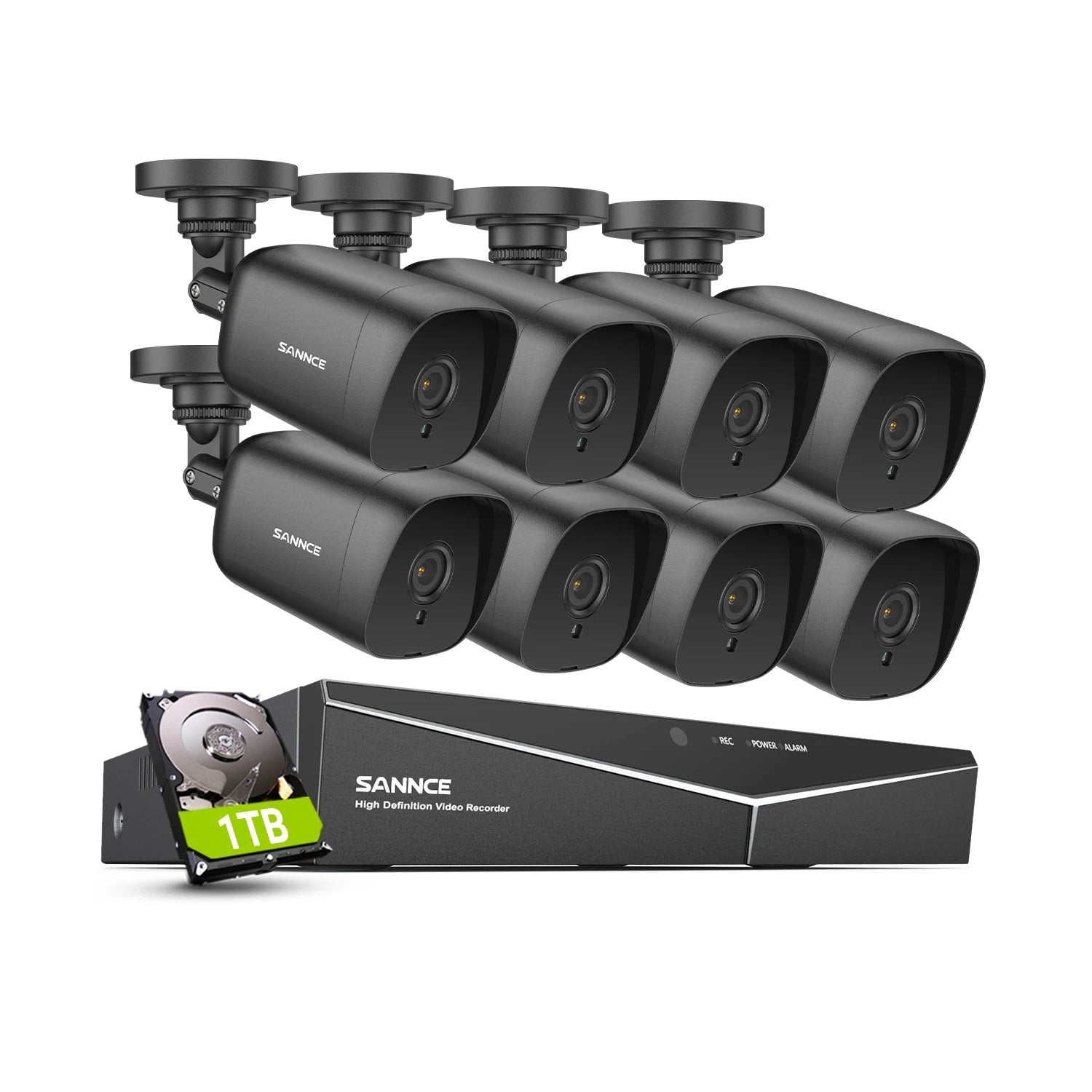

Security Camera CCTV System
Couldn't load pickup availability
Key features:
DVR:
★ Support 8CH 5MN definition encoding
★ Support AHD, TVI, CVI, CVBS, IP video input
★ HDMI/VGA simultaneous video output
★ 1 SATA (Up to 8TB)
★ 1*10/100Mbps auto-adaptive Ethernet port, RJ45 port
★ Automatic networking support, a key to adding equipment
★ Support alarm information push to phone
★ Support remote access, support ARSP
★ Mobile phone remote monitoring (iOS, Android)
★ Support Multi browser access, VMS PC client
Camera:
★ AHD 5MP high-clarity bullet camera
★ Up to 30m night vision with 12pcs IR LEDs
★ Compatible with 12.5&20 frames 5MP DVR
★ 3.6mm lens brings everything back to life
★ Clear day and night vision with auto IR-cut
★ IP66 Dust and Waterproof Rating
5MP Super HD Clarity: The HD-TVI wired security camera captures 5MP Super HD footage in all conditions, providing an upgraded image quality from 720p or 1080p surveillance cameras.
Up to 100 ft IR Night Vision: 12 built-in IR LEDs with the IR-cut filter turn on automatically to provide enough lighting in order to capture crystal videos (up to 100 ft) in 0 lux illumination night.

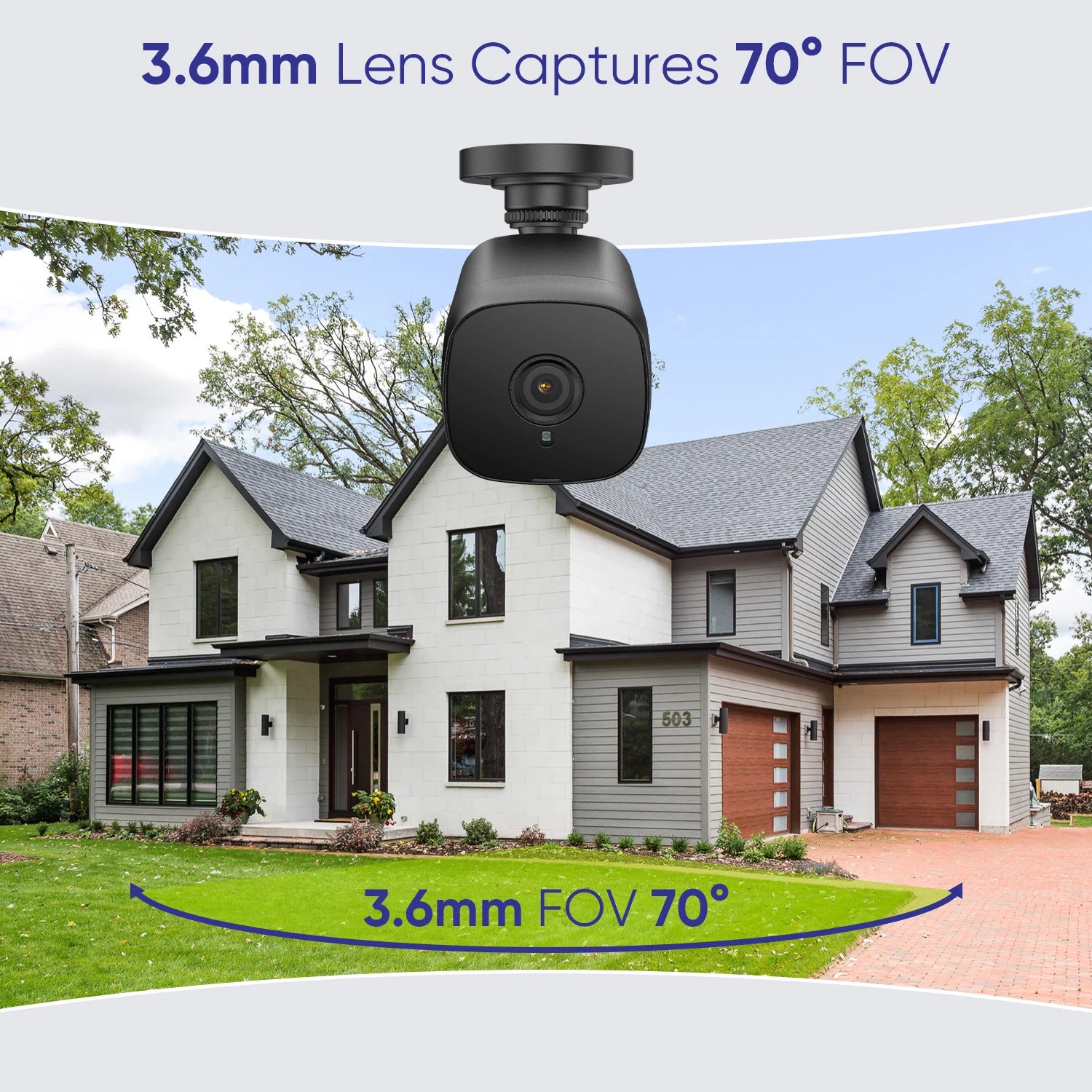

Ultra-Wide Angle with 3.6 mm Lens: 3.6 mm lens is perfect for covering wide-range areas. You are able to monitor your foyers, warehouses, front or back doors/yards, gardens, parking lots, etc. with just a camera.
Digital WDR & DNR: Digital WDR ensures sharp images even in the strongest lighting conditions, no overexposed/underexposed issues. DNR removes image noise in darkness to provide cleaner & clearer pictures.
Outdoor IP66 Waterproof: The surveillance camera is designed for outdoor placement and has an IP66 waterproof rating. It can brave the harshest weather, whether rainstorm or shine, snow or sleet.
DVR:
|
Video & Audio |
Codec |

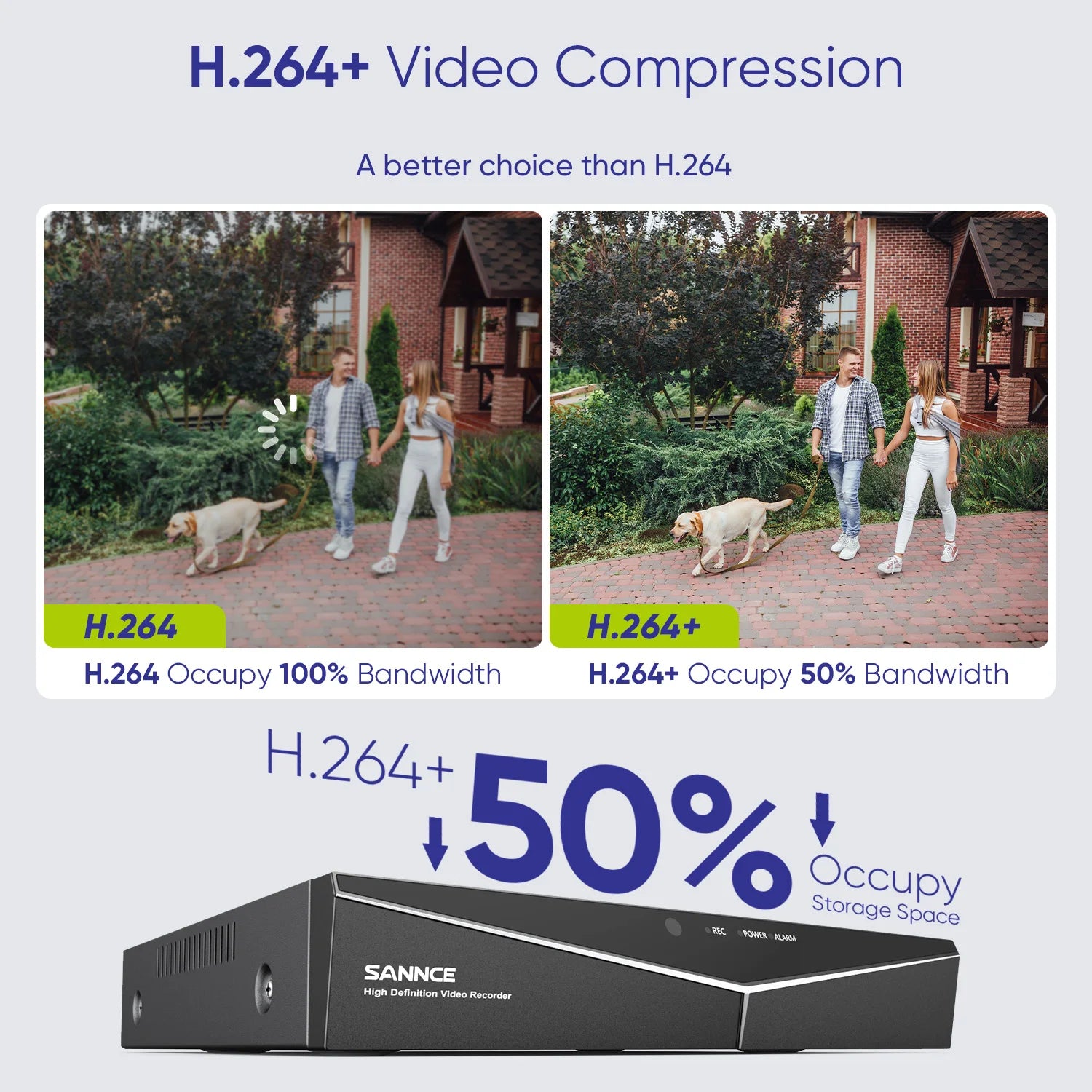

H.264+ |
|
Video input |
8*BNC |
|
|
HDMI output |
1*HDMI (MAX:1080P) |
|
|
VGA output |
1*VGA (MAX:1080P) |
|
|
Audio I/O |
2/1 |
|
|
Encode |
8*5MN@15fps |
|
|
Decode |
4*5MN@15fps |
|
|
Multi-mode |
Analog: 8*5MN@15fps; |
|
|
Hybird: 8*5MN@15fps(analog)+4*1080P |
||
|
IP: 16*1080P；16*5MP |
||
|
Playback |
4CH (Analog mode) |
|
|
Compression |
G.711a |
|
|
Intercom |
Support |
|
|
Hard Drive |
HDD |
1*SATA interface |
|
HDD Capacity |
Up to 8TB Capacity |
|
|
Management |
Record mode |
Manual>Motion detection>Schedule |
|
Inquire mode |
Inquire by Time/Calendar/Event/Channel |
|
|
Storage mode |
Sata HDD |
|
|
Backup |
Network, USB storage |
|
|
External Interface |
Ethernet port |
1*10/100Mbps Ethernet port, RJ45 port |
|
Alarm I/O |
0/0 |
|
|
PTZ control |
1*RS485, Support for multiple PTZ protocol |
|
|
USB Port |
2*USB2.0 ports |
|
|
General |
Power supply |
12V/2A |
|
Consumption |
<10W(Without HDD） |
|
|
Temperature |
0℃- + 55℃ |
|
|
Humidity |
10% -90% RH |
|
|
Dimension |
255(L)* 236mm(W)* 44mm(H) |
|
|
Weight |
Around 1KG |
|
|
Camera:
|
Camera |
Video Resolution |
AHD 5MP(12.5&20 Frame ) |
|
Signal system |
PAL/NTSC |
|
|
Image sensor |
Progressive Scan CMOS |
|
|
Lens |
3.6mm |
|
|
Min. Illumination |
0.02Lux@(F1.2 AGC ON),0Lux with IR on |
|
|
Angle of View |
70° |
|
|
Number of Infra-Red LEDs |
12 |
|
|
Night Vision Distance |
Up to 100ft/30m |
|
|
DNR |
3D DNR |
|
|
Wide Dynamic Range |
Digital WDR |
|
|
IR Cut Filter |
Yes |
|
|
Video Output |
HD BNCx1 |
|
|
General |
Housing |
Plastic |
|
Color |
Black |
|
|
Operating Power |
DC12V |
|
|
Operating Temperature |
-4 °F – 140 °F /-20 °C – 60 °C |
|
|
Indoor/Outdoor |
Indoor/Outdoor |
|
|
Weatherproof Rating |
IP66 |
|
|
Dimension (L x W x H) |
6.49” x2.36” x 2.36” / 165 x 60 x 60mm |
|
|
Weight |
0.33lbs / 150g |
